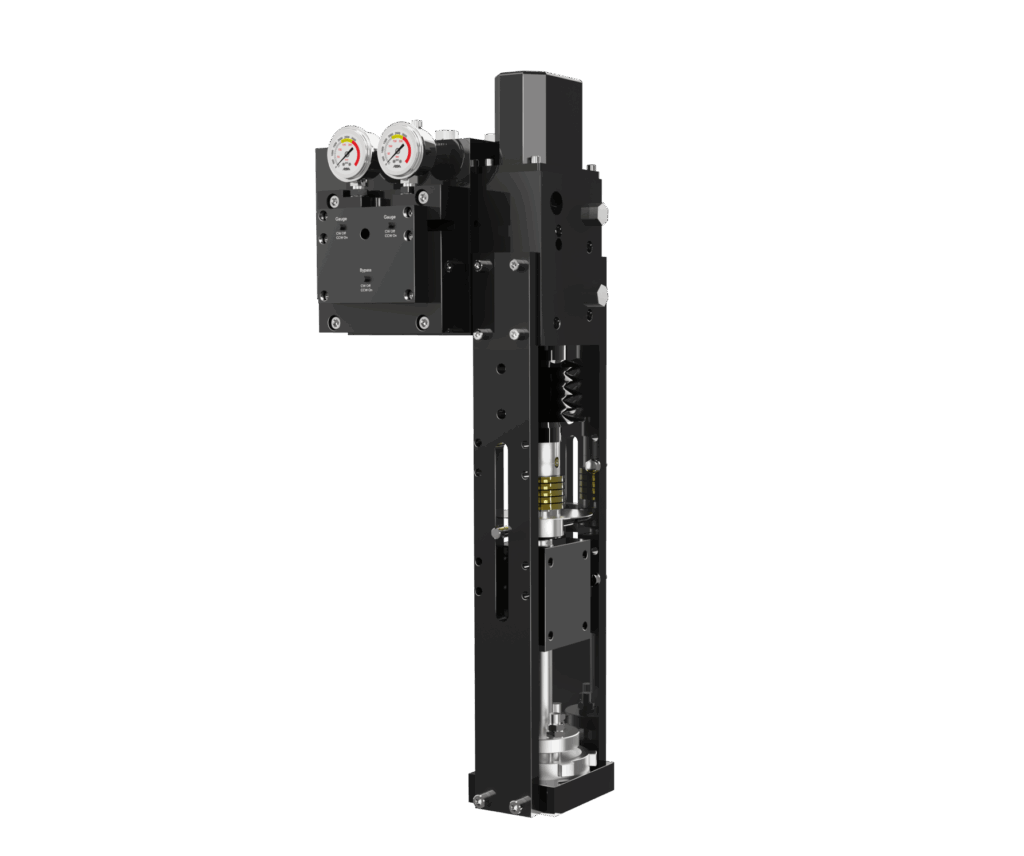

XPAC Series 3 Linear Actuators utilize a double acting hydraulic cylinder driven by one or more Electraulic™ Power Modules. Linear actuators are configurable to suit a wide variety of control and isolation applications across many industries. For both new equipment and retrofit scenarios, REXA manufactures the mounting bracket and stem adapter to fit any style valve, gate, damper or turbomachinery. REXA supplied interconnect cables allow for remote mounting of the electrical control enclosure away from harsh environments.

Features & Benefits:

• Fail-safe capable (Spring or accumulator)
• User-friendly push button calibration
• Low power consumption, high efficiency
• Adaptable to any valve, gate or turbomachinery
• Modular construction, flexible configuration
• No routine fluid maintenance
• Electraulic power module motor and pump system
• Closed-loop hydraulics
• 100% duty cycle motors

Available Options:

• Fail-safe capable (spring or accumulator)
• Redundant construction
• Manual override
• Environmental rating: NEMA4X/IP66
• Hazardous Area Rating: CSA/ATEX/IEC
• Low or high temperature configurations
• Valve, Gate or turbomachinery adaptation hardware

Thrust: 2000 – 275,000 lbf   8,896 – 1,332,260 N

Stroke: 2 – 120 in –  5 – 305 cm
