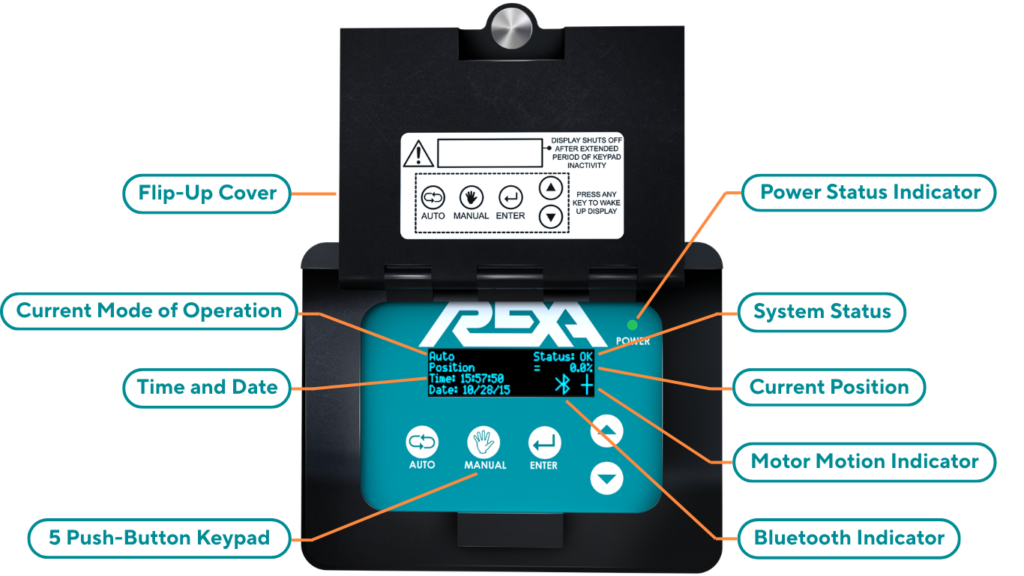

The REXA XPAC Series 3 features an intuitive operator interface designed to provide clear visibility into actuator performance and system status. Its 4-line vacuum fluorescent display and five-button keypad make navigation simple, while a convenient flip-up cover helps protect the controls. Operators can quickly view critical information including power status, current operating mode, system status, actuator position, and the current time and date for event recording. Additional indicators display Bluetooth antenna status and motor motion activity, providing valuable diagnostic and troubleshooting insight to help maintain reliable operation and simplify maintenance.
User Interface
User Programable Parameters
- Actuator Speed
- Two Speed Operation
- Deadband (.05 – 5%)
- Motor Gain
- Minimum Modulation Point
- Fail-Safe Position On Loss of Control Signal
- Open/Close Relays
- Surge Breakpoint
- Error Code Resets
- Password Protection
*This list represents the most commonly used control parameters. Other application specific control parameters are also available.*
Click below to learn how the REXA User Interface pairs with the XPAC Series 3 Linear Actuators, Rotary Actuators, and Damper Drives!
